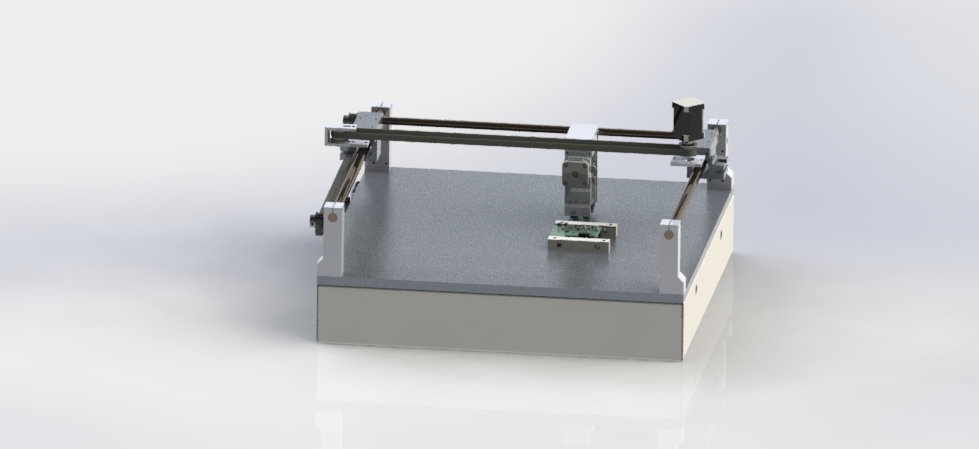

Pick and Place Machine
Cutting-edge functionalities for the future
| Seamless Setup with Pre-Built Machine Subassemblies: Experience a hassle-free installation with our pre-assembled machine subassemblies, streamlining the setup process for users at any skill level. | Expand Your Creativity – Maximum PCB Size: 350mm x 320mm: Unleash your imagination with a generous PCB size allowance, empowering you to bring your ambitious electronic projects to life on a larger canvas. | Precision in Every Detail – Minimum Component Size: 0402: Embrace intricate designs with the capability to handle components as small as 0402, ensuring your circuits are not only functional but also elegantly compact. |
| Your Playground for Innovation: Elevate your projects beyond limits! Our device isn’t just a tool; it’s a platform for your creativity. Customize and adapt for emerging applications, providing you with the freedom to explore uncharted territories. | Embark on Your Journey with Confidence : From unboxing to placing your first board, we’re with you every step of the way. Our user-friendly guides ensure that even if you’re new to the game, you can confidently navigate through the setup process and dive into your projects without hesitation. | Embark on your journey with our comprehensive setup assistance, guiding you through every step, from the moment you unpack to expertly placing your inaugural board. Our commitment is to ensure that your initiation into the process is not just smooth but a truly enriching experience, setting the stage for seamless and confident project execution. |
Feeder Support Built-In
The Nivo-H2 is designed with feeders in mind. It can be easily configured for up to 50 feeders at once.
8mm, 12mm, 16 mm feeders are available now, fully automating the vast majority of the parts in your BOM.
Contained within the package
- Nivo-H2 automatic Pick and Place Machine
- Top cameras for vision calibration
- 220 V, 50 Hz AC power supply
- Asia-style power cord included
- Supports 110v / 220v AC Input
- Packaged safely with recycled PE foam
- Fully tested & assembled electrical system
- One set of six CP45 nozzle tips
- 8mm, 12mm, 16mm Strip Feeders
- Universal PCB fixture system
- Complete Tool Kit
- 45° tweezers
- Metric Allen wrench set
Technical Specifications
| Maximum PCB Size | 350mm x 320mm |
| Supported Component Metrics | Down to 0402, up to 20mm tall, up to 25 grams |
| Placement Speed | 3500+ CPH (depends on component size and machine configuration) |
| Machine Dimensions | 750mm(L)×610mm(W)×220mm(H) |
| Power Consumption | 110W |
| Control Software | OpenPnP |
Product Highlights:
The NW-PnP boasts advanced features that demand configuration and setup through OpenPnP, providing users with a customizable and cutting-edge experience.
Please note that the final machine design may undergo enhancements before shipping, as we are dedicated to continuous updates and improvements to deliver the best possible product.
Crafted with pride, our machines are assembled in India, ensuring quality and reliability in every unit.
For your convenience, items purchased together will be shipped simultaneously, aligning with the lead time of the longest item in your order.
Have inquiries before placing your order? Connect with us through our dedicated Support Form or request an invoice via info@neway.asia. We’re here to assist you every step of the way.
